Extracting Data from Ableton .als and .asd Files

If you've ever wondered what data Ableton Live stores in its project files, you're not alone. As part of our work at MusicTech Lab, we needed to extract metadata from Ableton projects – tempo, time signature, track names, and song sections – to power our music analysis workflows. The result is MTL Ableton Analyser, an open-source Python tool that parses both .als (Ableton Live Set) and .asd (Ableton Sample Data) files.

In this article, we'll explore what's inside these files and how to extract useful data from them programmatically.

Understanding Ableton's File Formats

Ableton Live uses two primary file formats for storing project and analysis data:

The key insight is that .als files are actually compressed XML, making them relatively straightforward to parse. The .asd files, however, are proprietary binary and require reverse-engineering to extract data.

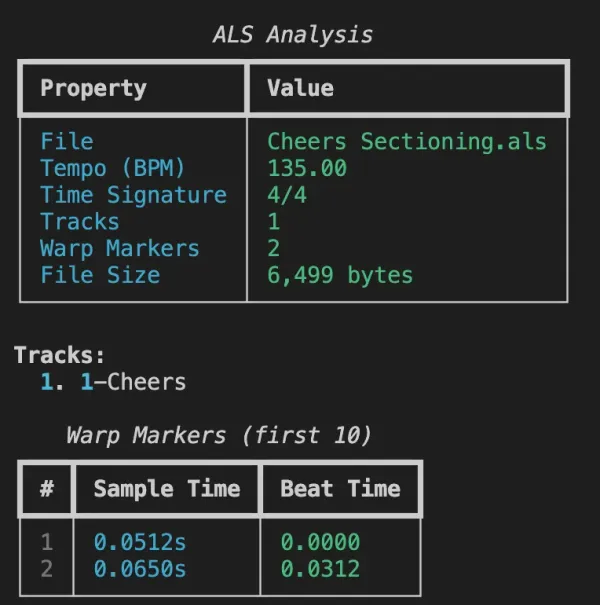

Data Extractable from .als Files

When you decompress an .als file, you get a well-structured XML document containing the entire project state. Here's what we can reliably extract:

Project Metadata

Warp Markers

Warp markers define the relationship between audio time (seconds) and musical time (beats). Each marker contains:

• SecTime – Position in the audio file (seconds)
• BeatTime – Corresponding position in beats

This data is essential for beat-synced playback and tempo manipulation.

Locators (Section Markers)

Perhaps the most valuable data for music analysis – locators represent named positions in your arrangement:

{
  "sections": [
    { "name": "INT1", "beat": 0 },
    { "name": "VER1", "beat": 32 },
    { "name": "CHO1", "beat": 64 },
    { "name": "BRD1", "beat": 96 },
    { "name": "OUT1", "beat": 128 }
  ]
}

These locators, when combined with tempo data, give you a complete song structure map with precise timestamps.

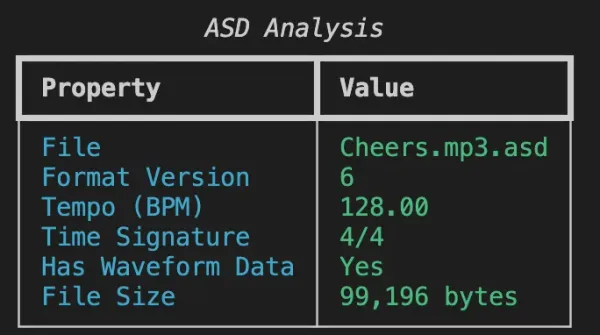

Data Extractable from .asd Files

The .asd format is more challenging. Ableton creates these files automatically when you analyze audio, storing:

Detected Metadata

BPM Detection Strategy

The BPM value in .asd files isn't at a fixed offset. Our parser searches multiple known locations:

KNOWN_BPM_OFFSETS = [7736, 8448, 8632, 7685, 7740, 8440]

def find_bpm(data: bytes) -> Optional[float]:
    for offset in KNOWN_BPM_OFFSETS:
        if offset + 4 <= len(data):
            value = struct.unpack('<f', data[offset:offset+4])[0]
            if 60.0 <= value <= 200.0:
                return round(value, 2)
    # Fallback: scan byte range for valid BPM
    return scan_for_bpm(data, range_start=6000, range_end=9500)

Practical Applications

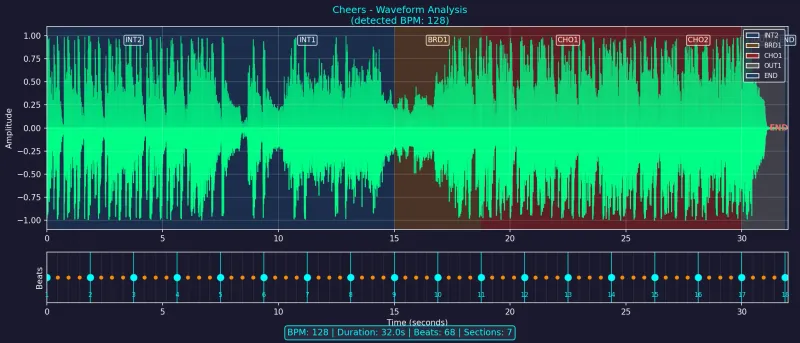

Waveform Visualization with Sections

By combining data from both file types, we can generate rich visualizations:

The visualization includes:

• Waveform amplitude – extracted from the audio file
• Beat grid – calculated from BPM and time signature
• Section overlays – color-coded backgrounds from locator data
• Downbeat markers – emphasized beats at bar boundaries

WaveSurfer.js Integration

For web applications, we export a JSON format compatible with WaveSurfer.js:

{
  "version": "1.0",
  "filename": "track.mp3",
  "duration": 180.5,
  "sampleRate": 44100,
  "bpm": 128,
  "beatsPerBar": 4,
  "totalBeats": 385,
  "peaks": [0.12, 0.45, 0.89, ...],
  "beats": [
    { "time": 0.0, "beat": 1, "isDownbeat": true },
    { "time": 0.469, "beat": 2, "isDownbeat": false }
  ],
  "sections": [
    { "name": "INT1", "start": 0.0, "end": 15.0, "color": "#1E3A5F" },
    { "name": "VER1", "start": 15.0, "end": 30.0, "color": "#3D1A5F" }
  ]
}

This powers interactive, beat-synced waveform players in the browser.

Live Demo

Try it yourself: https://mtl-ableton-analyser.web.app

The web app lets you:

• Load audio files (MP3, WAV) directly in the browser
• Parse .als files client-side – no backend required
• View waveform with beat grid and section overlays
• Toggle between bars and time-based timelines
• Navigate by clicking on sections or the waveform

Using MTL Ableton Analyser

The tool is available as an open-source Python CLI:

git clone https://github.com/musictechlab/mtl-ableton-analyser
cd mtl-ableton-analyser
poetry install

Analyze Files

poetry run mtl-ableton-analyser analyze /path/to/project.als --verbose
poetry run mtl-ableton-analyser analyze /path/to/audio.mp3.asd

poetry run mtl-ableton-analyser analyze /path/to/projects --recursive

Generate Visualizations

poetry run mtl-ableton-analyser visualize audio.mp3 --als project.als -o waveform.png

Export for Web

poetry run mtl-ableton-analyser export audio.mp3 --als project.als -o waveform.json

Capabilities Summary

Limitations

While we can extract a lot, some data remains inaccessible:

• Detailed onset data – Ableton stores transient detection but in an undocumented format
• Embedded waveform peaks – Detected but not directly extractable from .asd
• Plugin states – Complex binary data within the XML
• Write capability – This is a read-only tool

What's Next?

This tool is part of our broader work on music analysis at MusicTech Lab. Combined with our other Ableton integrations, you can build powerful workflows:

1. Create section markers in Ableton → Export with our Max for Live device
2. Analyze files programmatically → Use MTL Ableton Analyser
3. Visualize in web applications → WaveSurfer.js integration
4. Enhance with AI → Feed structure data to ML models

Related Articles

• Exporting Ableton Live Locators to JSON with Max for Live – Create and export section markers directly from Ableton
• Connecting Your Max for Live Device to a Cloud API – Send Ableton data to web services
• Automatic Song Structure Analysis – How AI Detects Intro, Verse, and Chorus – AI-powered section detection
• Building a DIY MIDI Controller for Ableton Live with Arduino – Hardware integration with Ableton

Have questions about parsing Ableton files or building music analysis tools? Get in touch – we'd love to hear about your use case.
